PVC Pipe Fitting Mould

PVC Pipe Fitting Mould

Contact Us

PVC Pipe Fitting Mould Details

Mould name: PVC Belling Pipe Fitting Mould
Mould cavity:2 cavity
Mould size:1000X1000X600 mm
Mould material: DIN 1.2316
Mould life:1,000,000 Shots Ejection system: Collapsible core system
Mould running: Fully automatic Mould features: Excellent precision control for demension tolerance and shrinkage With intensive cooling system, optimal air venting, shining polish, advanced mould design Collapsible core system make it easier to operation, Superior impact and abrision resistance for the moulds
Injection cycle time:50Seconds
Delivery time:50 days

Features

PVC Pipe Fitting Mould
PVC pipe fittings with thin wall thickness are commonly used for water pipes. Most wire pipe valve connections use a size of 20MM-110MM (direct, elbow, tee, ball valve, three-dimensional tee, three-dimensional four-way, plane four-way, 45 degree elbow, inner wire direct, outer wire direct, cap, pagoda connector). The mould should have an external core pulling structure, and the best cooling design can speed up the product molding. The insert should preferably be made of stainless steel, it's corrosion resistant and can reach long life time.

Products Display

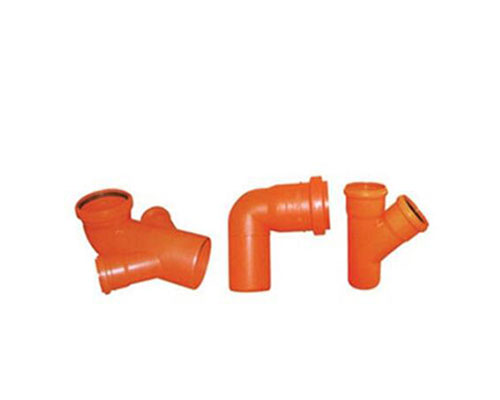

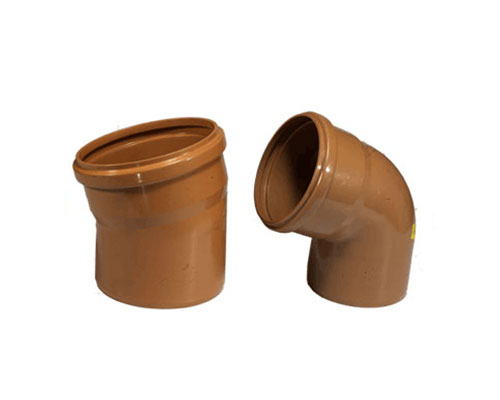

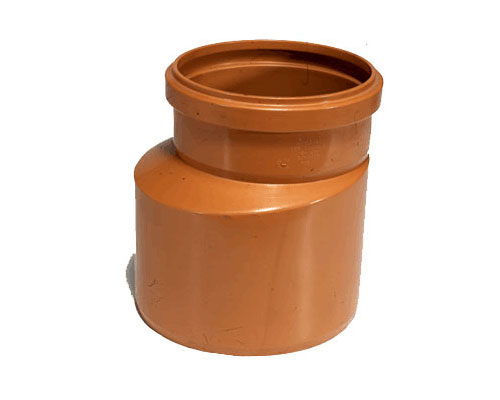

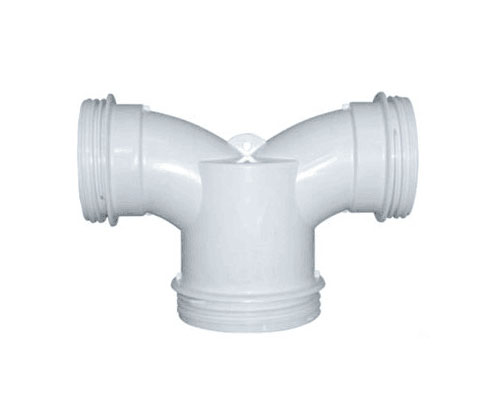

  • PVC Pipe Fitting Mould
  • PVC Pipe Fitting Mould
  • PVC Pipe Fitting Mould
  • PVC Pipe Fitting Mould
  • PVC Pipe Fitting Mould

Exhibition

  • Guangzhou Exhibition
  • Pakistan Exhibition
  • Pakistan Exhibition

About Us

Taizhou Huangyan Yongsheng Mould Co., Ltd.

Taizhou Huangyan Yongsheng Mould Co., Ltd. is professional China PVC Pipe Fitting Mould Suppliers and PVC Pipe Fitting Mould company, founded in 2007, is located at Zhejiang province china mould town Huangyan. We committed to the shortest possible time to domestic and foreign customers with high quality, competitive PVC Pipe Fitting Mould designing. Adhere to the "quality orientation, customer priority, integrity-based" approach, innovative technology, product innovation, enterprise sustained, rapid and healthy development. We have a highly qualified technical team, gather a group of young and dynamic industry members, they are full of hands-on experience with creativity, always make unremitting efforts to target higher demands on themselves. The company constantly improve their own management and upgrade technology research and development capabilities, while promoting the development of China's mold industry.

Ysmou Plastic Mold News

Contact us now

Relevant Knowledge Extension

PVC pipe fitting moulds are used to produce PVC fittings, such as elbows, tees, couplings, and adapters, used in plumbing and piping systems. These moulds are made of high-quality steel and are designed to withstand high pressure and temperature during the production process. They are typically manufactured using CNC (computer numerical control) machines to ensure precise dimensions and consistent quality.The working principle of a PVC pipe fitting mold is based on plastic injection molding. The process involves heating plastic material to a molten state, then injecting it into a mold under high pressure. The mold is designed in the shape of the desired PVC pipe fitting, and as the plastic cools and solidifies, it takes the shape of the mold cavity. Once cooled, the mold is opened and the finished PVC pipe fitting is removed. The mold is then closed and the process repeated for the next piece.
What are the advantages of PVC Pipe Fitting Mold?
1.Durable and long-lasting
2.Chemical resistant
3.Lightweight and easy to install
4.Low maintenance
5.Cost-effective
6.Wide range of sizes and shapes available.
